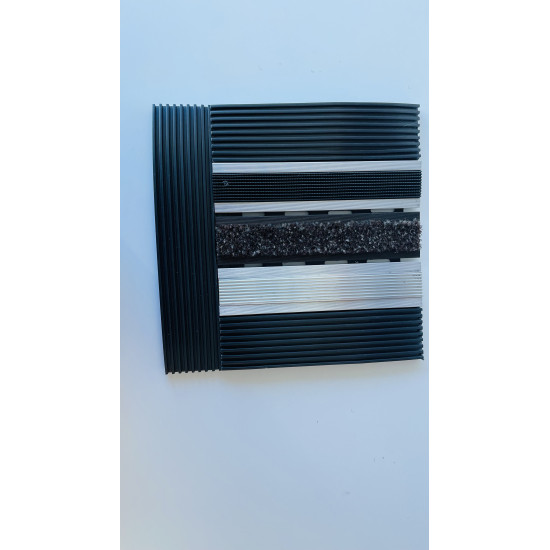

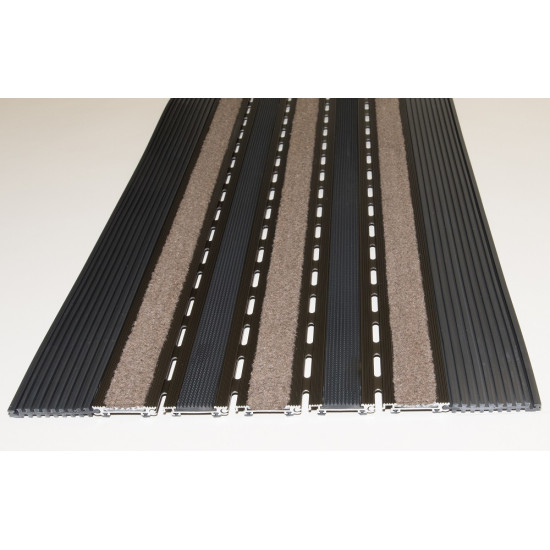

3/4″ Recessed Grille Mats

The UFM Comfort Series ¾ inch Recessed Grille Mat is a premium aluminum entrance system designed for heavy traffic environments. Built with durable 6063-T52 aluminum rails and a flexible roll-up hinge, it captures dirt and moisture effectively while supporting loads up to 1000 lbs per wheel. Custom sizes, finishes, and insert options available to match any architectural design.

Made in USA
Request a Quote
SKU: UFMRMRG34 Categories: ,

Description

The UFM Comfort Series ¾ inch Recessed Grille Mat is built for facilities that expect long-term performance, safety and a refined architectural finish. This mat is engineered with corrosion-resistant 6063-T52 aluminum rails supported by a flexible vinyl hinge system that stays strong even in challenging weather conditions. The elevated rail structure allows dirt, debris and moisture to fall into the recessed pit beneath the walking surface which keeps your lobby clean and reduces the risk of slip-and-fall incidents.

Designed for heavy-traffic commercial environments, this grille mat can support rolling loads of up to 1000 lbs per wheel which makes it ideal for retail stores, hospitals, hotels, airports, schools, office buildings and any entrance that experiences continuous movement. Whether you choose carpet inserts for moisture absorption, serrated aluminum for aggressive scraping or textured vinyl for all-purpose performance, each option is crafted to meet the demands of your space.

Every UFM grille mat is fully customized to your recessed well including width, length, shape, frame type and aluminum finish. Choose from mill, clear anodized, bronze, black or gold to complement your interior design. The roll-up configuration makes maintenance simple. Lift the mat, clean the pit and place it back with ease. This mat is also LEED-supportive and includes recycled aluminum content for environmentally minded facilities.



Additional information

Carpet Color

Charcoal, Black Iron, Onyx, Shadow, Cast Iron, Gray, Silver, Espresso, Suede, Java, Spice, Green, Blue

Brush Colors

Charcoal, Chocolate Brown, Gray

Vinyl Color

Black, Grey, Brown

Serrated Metal Color

Mill, Clear, Black, Dark Bronze, Gold

Metal Color

Standard Aluminum Mill Finish, Clear Aluminum Anodized, Black Aluminum Anodized, Dark Bronze Aluminum Anodized, Gold Aluminum Anodized

Abrasive Insert Color

Black, Dark Brown, Gray, Brick Red

Features & Benefits

No Data Found

Maintenance Tips

No Data Found

Product Description

Feature Description
Product Depth¾ inch
Rail Material6063-T52 aluminum
Insert OptionsCarpet inserts, Vinyl inserts, Serrated aluminum, Abrasive/grit inserts
Finish OptionsMill, Clear anodized, Dark bronze, Black, Gold
Frame TypesL-Frame or Cast-in-place
Recess Compatibility11/16 inch to 13/16 inch depth
Load CapacityUp to 1000 lbs per wheel
Temperature ResistanceVinyl hinge flexible to –30°F
Rail SpacingStandard commercial specification
Custom SizesCustom width, length and shapes available
MaintenanceRoll-up design for easy cleaning
